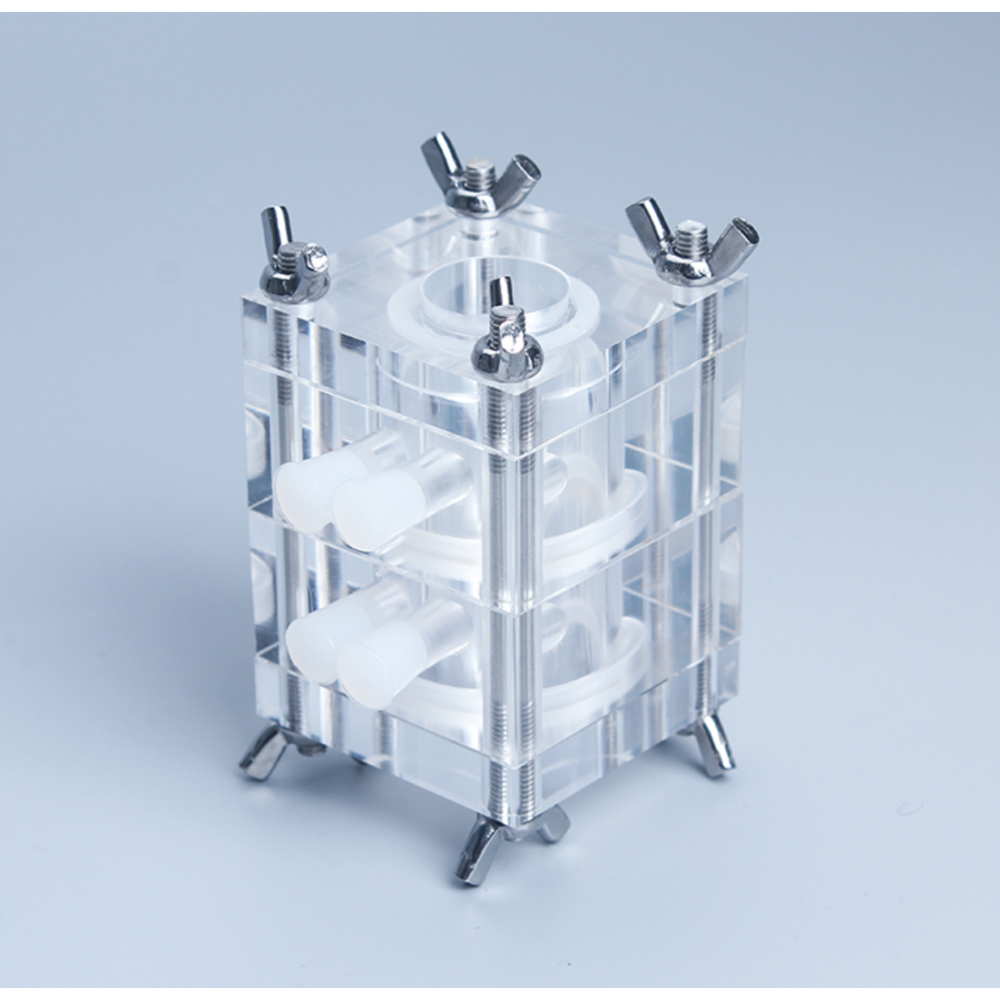

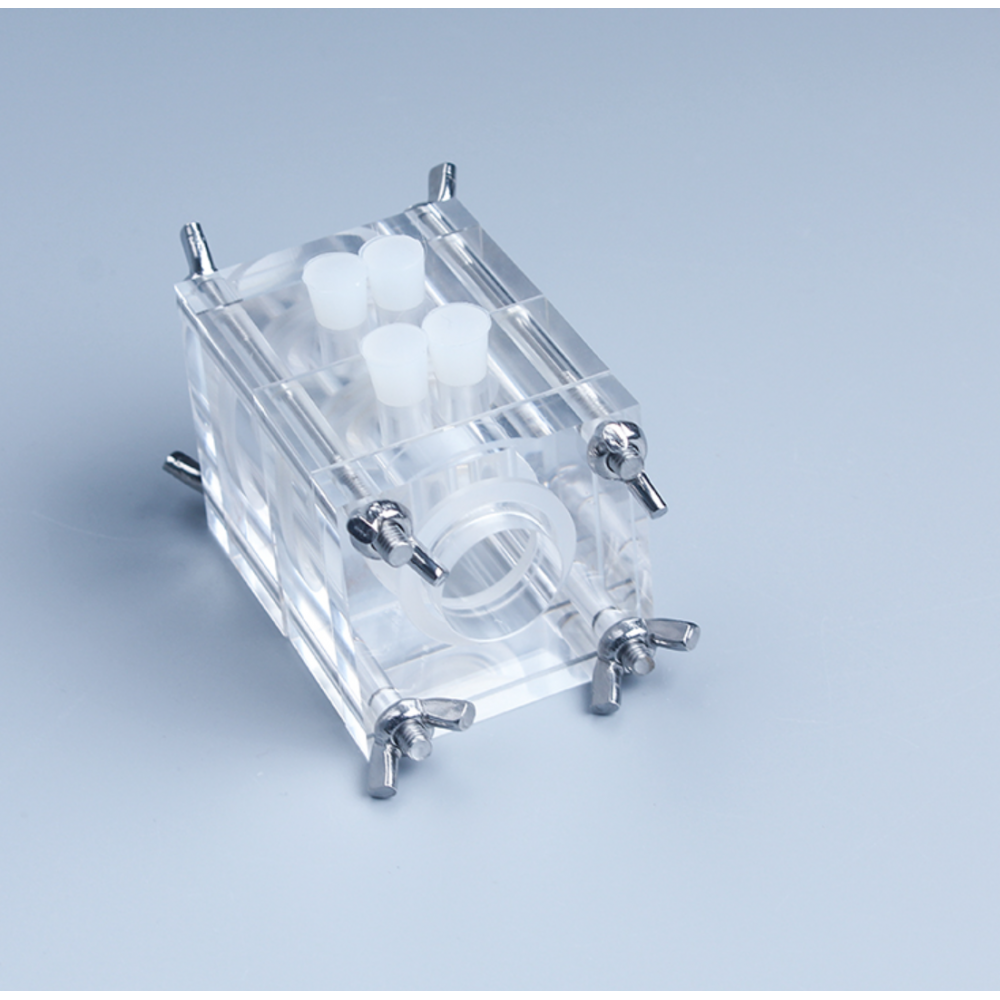

Zinc air battery test device Metal fuel cell reactor Secondary zinc air electrolyzer

  • Brand:  Proglass
  • Product Code:  1000-0000-00
  • Availability:  In Stock
Available Options
$95.00

Ex Tax: $95.00

Features of the device: 1: use plexiglass as the main material, its characteristics are alkali resistance, high physical strength, not easy to stick oil or wear.

2: transparent, easy to observe, beautiful and generous, it is an ideal configuration for experimental testing.

3: easy to assemble and disassemble. The reaction area is divided into 1, 2, 3 and 4.5cm², which can be customized if there are other requirements.

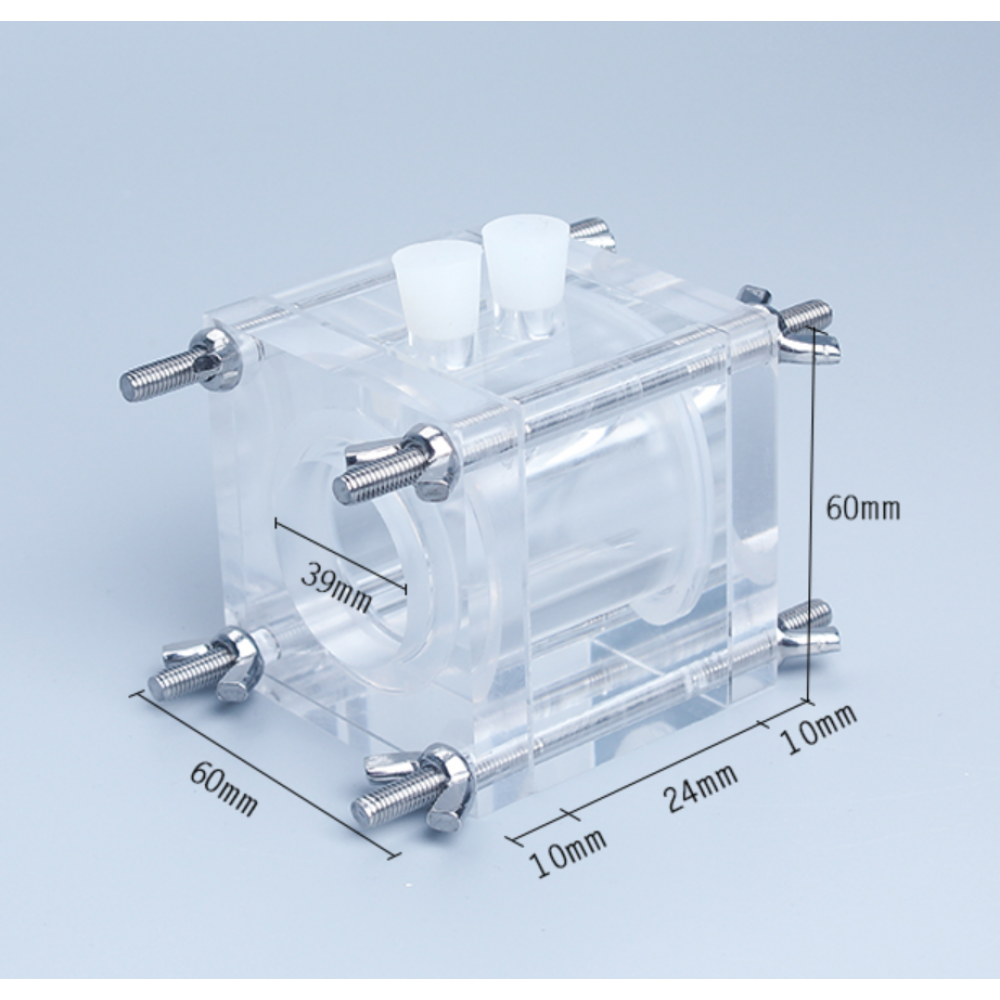

Product parameters:

Mold material: PMMA

Color: transparent

Width: 7CM

Height: 6CM

Distance between positive and negative poles: 1.4cm

Sealing performance: no leakage

Reaction area: 1cm², 2cm², 3cm², 4.5cm²

Maximum liquid loading: 6.5g


The reaction area of cathode is 1cm², but in order to increase the amount of liquid in the device, the reaction area on one side of anode / zinc electrode is appropriately expanded (about 5.3cm²), and this adjustment will not affect the performance test of cathode itself. Please contact us before purchase if you need the corresponding area of anode and cathode.
