Vacuum Traps,Serrated Hose Connections
- Brand: Proglass
- Product Code: 1209
- Availability: In Stock
$57.02
Ex Tax: $57.02

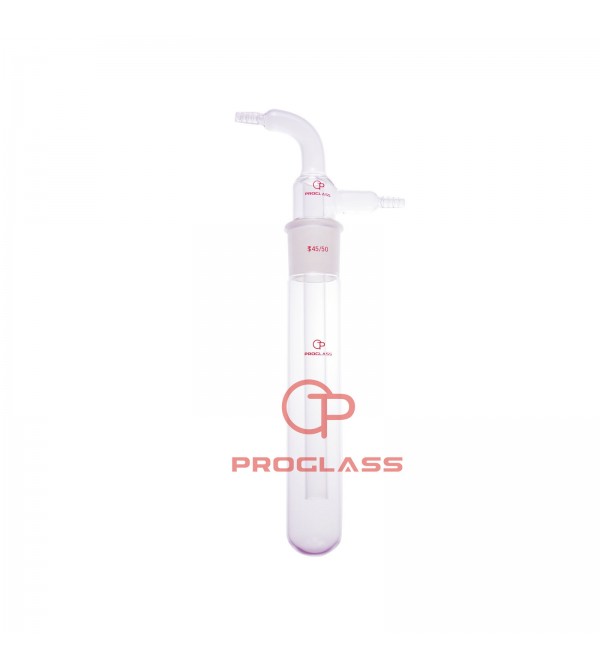

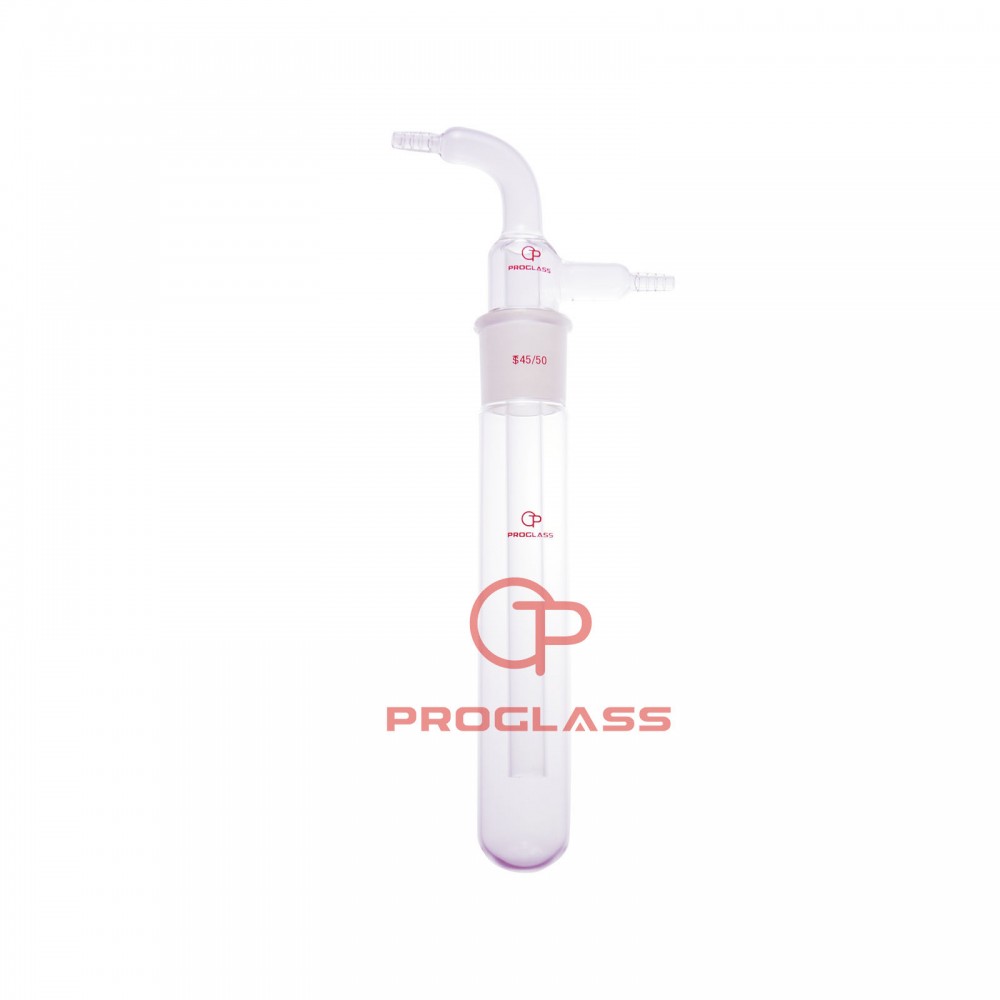

Two piece construction for easy removal of condensate. Inlet and outlet are 180º apart for installation into a variety of vacuum systems. Stopper has a standard taper inner joint and body has an outer joint. Body length is the overall length from the top of the joint to the bottom of the round bottom. Serrated hose connections have an O.D. of 13mm at the smallest serration and 16mm at the largest serration.
|
Joint |
OD |
Main Body |
inner tube OD |
|
24/40 |
30 |
200 |
10 |
|
29/42 |
32 |
200 |
10 |
|
34/45 |
40 |
225 |
16 |
|
40/50 |
45 |
250 |
16 |
|
45/50 |
50 |
250 |
22 |
|
50/50 |
55 |
275 |
26 |
|
55/50 |
60 |
300 |
30 |
If you need any other size,please contact with us by the leave a message.
Be Made From G3.3 Borosilicate Glass
Annealing Point ------560℃
Linear Coefficient of Expansion------ 33×10-7/℃
Softening Point------820℃
