Laboratory Short Path 5L Distillation Kit With Display Magnetic Heating Mantle

Laboratory Short Path 5L Distillation Kit With Display Magnetic Heating Mantle

  • Brand:  Proglass
  • Product Code:  9001-0001-00
  • Availability:  In Stock
Available Options
$1,346.00

Ex Tax: $1,346.00

Customized would be availible
Made by hand blowing
Made of borosilicate glass 3.3
Customer's Logo would be available for bulk order


Description:
Remark,when you will select the 10000mL molel,the volume and the joints will be bigger than the 5000ML

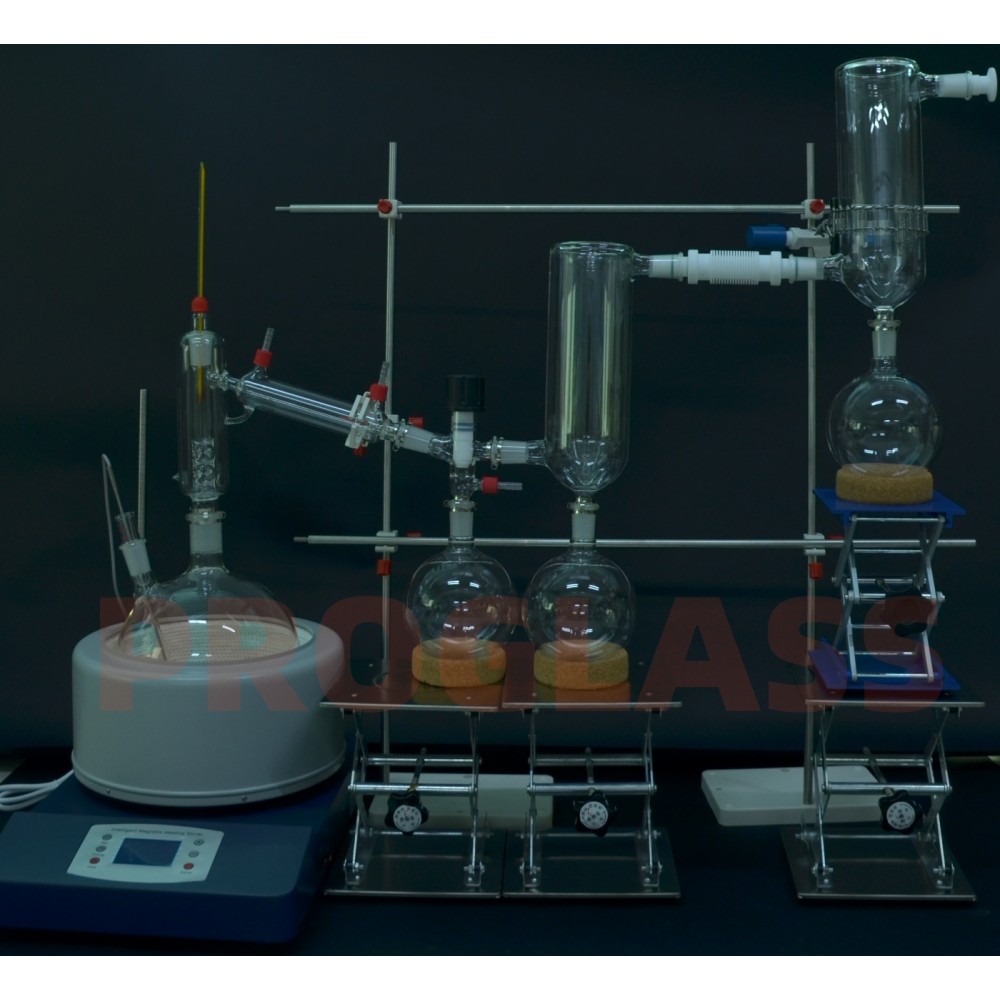

This is a set of 24/40 glassware for distillation in lab. With a 24/40 joint to accept thermometers calibrated for 75mm immersion.
The distributing adapter consists of a single 24/40 outer joint and three 24/40 inner joints to accept three 500mL Round bottom flask receivers.
The receivers are held in place with plastic clamps. Including:

1.Distillation head, short path with 24/40 joint, with a 14/20 outer joint to accept thermometers calibrated for 75 mm immersion.one piece design for easy set up.with removable hose connector.
2.Distributing adapter, distillation receiver, with the24/40 outer and inner joints at 135 degree angle. with removable hose connector
3.500mLRound Bottom flask receivers with 24/40 joint 3 pcs
4.5000mL 2 necks flask, heavy wall design, with 24/40 joint, 1 pcs.
5.Cold Trap 24/40,100mm outer diameter with removable hose connector,2pcs
6.1000ml Receiving Flask,24/40,2pcs
7.thermometer adapter, 24/40 joint. 1pcs
8.thermometer adapter, 14/20 joint. 1pcs
9.Bleeding tube.2pcs.
10.Penny-Head Hollow Glass Stopper.1pcs
11.Accuracy Yellow back Thermometer.1pcs
12. 5000ML110V OR 220V 50/60HZ,450W, Digital Magnetic Stirring Heating Mantel,1pcs
13.All of the clamps and stand in the picture


Be Made From G3.3 Borosilicate Glass

Annealing Point ------560℃

Linear Coefficient of Expansion------ 33×10-7/℃

Softening Point------820℃
